Fujikura

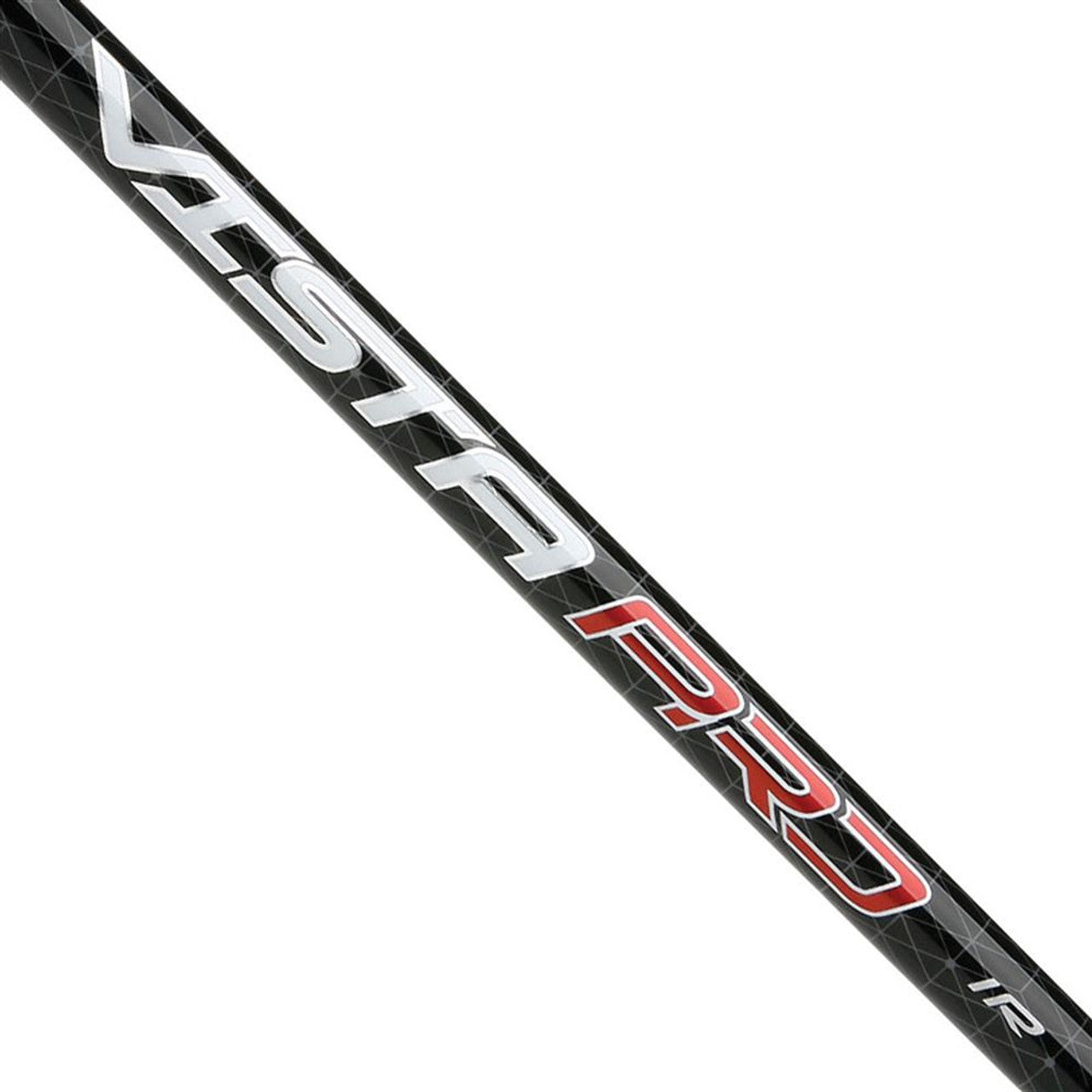

Fujikura Vista Pro Graphite Iron Shafts
Fujikura Vista Pro Graphite Iron Shafts
Couldn't load pickup availability
Description
The Vista PRO Iron shafts benefit from Tour proven Fujikura technologies CAGE and Maximum Fiber Content. Cage is an innovative design process that surrounds graphite shaft fibers in the outer walls with a rigid “cage” structure. This creates thinner, lighter walls that have the same feel and control of a heavier shaft. Maximum Fiber Content Provides greater stiffness and strength compared to a standard/conventional material at a similar weight. This allows for increased stability, distance, and feel. Materials containing an extremely high fiber content are difficult to make, and only the best, high-precision material suppliers can accomplish it and they make it especially for Fujikura Golf
Features:
Ultralight weight design provides increased club head speed for greater distance.
Produces a mid to high trajectory for exceptional carry and stopping power
The new version of the classic, Tour-trusted Vista Pro Series provides versatility, professional grade technology, and Tour design aesthetics.
The new Vista Pro line benefits from proprietary Fujikura technologies like CAGE, Maximum Fiber Content, and PHANTIUM®, all of which make Fujikura #1 on Tour.
Various launch, spin, and weight options appeal to many players.
Fujikura Flex Designations - R3=L Flex, R2=Senior Flex
| IRONS | FLEX | MPF | TRIM CODE | BUTT DIA. | TIP DIA. | WT. | LENG. | TORQ. | PARALLEL TIP SECT. | TRAJ. |
|---|---|---|---|---|---|---|---|---|---|---|
| IRONS-40i | R3 | 1D3S | IR6 | .590" | .370" | 49g | 40.5" | 5.2° | 6" | HIGH |
| IRONS-50i | R2 | 2D3M | IR6 | .595" | .370" | 58.5g | 40.5" | 4.4° | 6" | HIGH |
| IRONS-50i | R | 3B3M | IR6 | .595" | .370" | 59g | 40.5" | 4.2° | 6" | HIGH |
| IRONS-60i | R | 3B2M | IR6 | .600" | .370" | 67g | 40.5" | 4.1° | 6" | HIGH |
| IRONS-60i | S | 4B2M | IR6 | .600" | .370" | 68.5g | 40.5" | 3.9° | 6" | HIGH |
| IRONS-70i | R | 3B2M | IR6 | .605" | .370" | 74.5g | 40.5" | 3.7° | 6" | MID |
| IRONS-70i | S | 4B2M | IR6 | .605" | .370" | 75g | 40.5" | 3.6° | 6" | MID |
Tip Trimming
The following tip trimming instructions are suggestions only. We generally do not recommend tip trimming on a driver or 3 wood shaft based on the shaft composition and how tipping could affect performance. We recommend that you consult your custom fitter or club-builder for the best tip trimming suggestions based on your individual swing and desired results. To locate a Fujikura custom fitter near you, please use our Dealer Locator.
In general, tip trimming can be used to achieve a stiffer shaft profile, lower launch, and/or lower spin. Tip trimming 1“ is equivalent to one flex. For example, if you wanted to stiffen your S flex to an X flex then you would tip trim 1”. If you prefer to play shaft in between S and X flex, you would tip trim 1/2”.
| Woods | 1 | 3 | 5 | 7 | 9 | ||||
| All Wood Shafts | 0″ | 0″ | 0.5″ | 1.0″ | 1.5″ | ||||
| Hybrids | 15°-17° | 18°-20° | 21°-23° | 24°-27° | 28° | ||||
| All Hybrids | 0″ | 0″ | 0.5″ | 1.0″ | 1.5″ | ||||
| VENTUS HB | .370 parallel can be tapered to be used in .355 tapered hybrid clubs or utilities and long irons. | ||||||||
| Irons | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | W |
| AXIOM | 0″ | 0.5″ | 1.0″ | 0″ | 0.5″ | 1.0″ | 0″ | 0.5″ | 1.0″ |
| *Butt trim to desired length; can be tapered to fit .355 hosels | |||||||||
| Irons | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | W |
| PRO/Vista Pro/Sakura | 0″ | 0.5″ | 1.0″ | 1.5″ | 2.0″ | 2.5″ | 3.0″ | 3.5″ | 4.0″ |
| PRO/Vista Pro/Sakura | Butt trim to desired length* | ||||||||
| MCI | No tipping required; Butt trim to desired length* | ||||||||
